Description
PRODUCT DETAILS
HEATING METHOD
Infrared heating is an indirect heating method that simulates solar heat by not heating room air, unlike conventional convection heating, they can release the stored thermal energy evenly into the room, so it gives you a warm feeling like sunlight and maintain a clean, dust free environment..
SIMPLE INSTALLATION

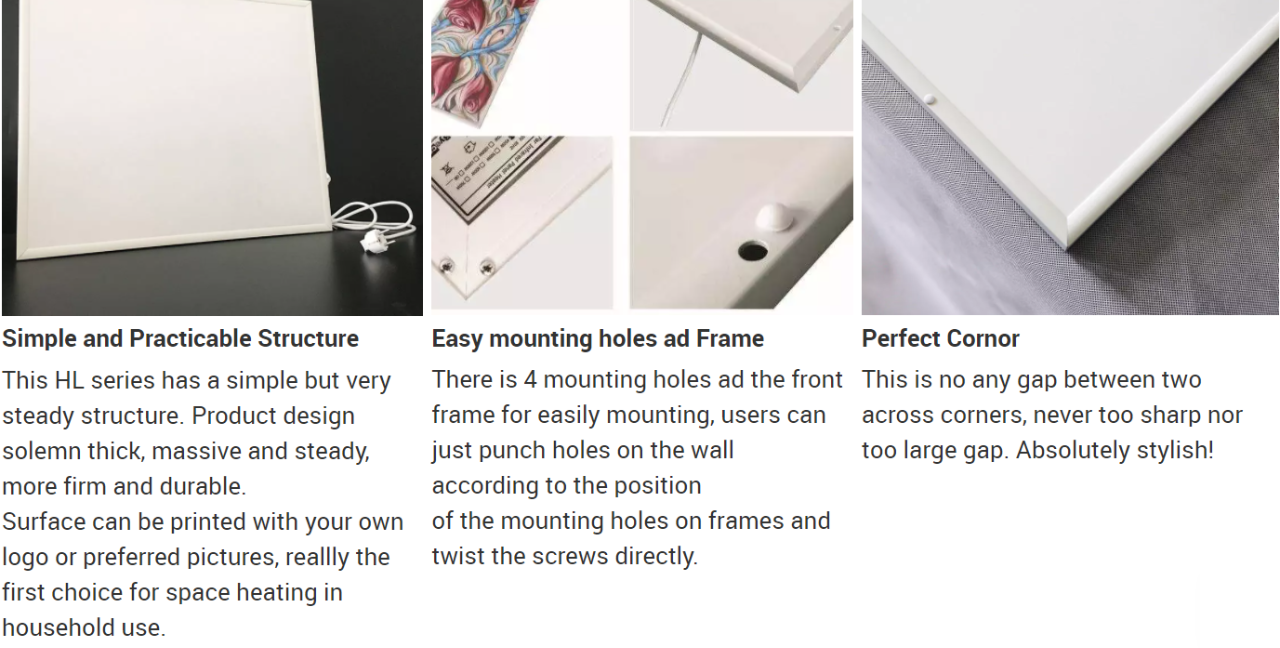

The heating panel is ready for immediate use, no complex installation, mounting kits also included. Suitable for domestic and commercial users
SAFETY
No pipes, chimneys, potential gas, oil or water leaks. Byecold infrared heater has Overheat Protection (Auto-power Off when the surface temperature is too high).
Our heating panels comply with all European safety standards (ROHS, CE , GS and TüV).
Benefits
- The Infrared Panel Heater is designed to provide an efficient, comfortable and healthy heating system for any domestic and commercial users.
- These panel heaters can reduce air circulation and help to maintain a clean, dust-free environment.
- A wide range of heating panels available in a huge choice of colors, sizes and styles.
SPECIFICATION
Model No. | Diemension | Rated power (ceiling mounting) | Rated power (wall mounting) |
HL0605 | 620*520*15mm | 220W | 290W |
HL0606 | 620*620*15mm | 270W | 350W |
HL0706 | 720*620*15mm | 320W | 400W |
HL0906 | 920*620*15mm | 400W | 520W |
HL1206 | 1220*620*15mm | 550W | 700W |
HL1207 | 1220*720*15mm | 650W | 850W |
HL1209 | 1220*920*15mm | 800W | 1050W |
Technical Parameters | |||
Heating Element | Graphene Carbon Crystal | Ingress Protection Rating | IP54 |
Wave length | 8~15μm | Warranty | 5 Years |
Surface Temperature | 85~100℃ | Over Heat Protection | Yes |
Back Material | Polyurethane+Aluminum Foil | Frame | Aluminum |
Surface Material | IR Ceramic Coating | Plug in | Yes |
Installation | Wall mounted, Ceiling mounted, Floor standing | Optional | ON/OFF switch |
Certificates | CE,RoHS,SAA | Default Cable Length | 1.9 Meters |
Control Mode | Remote control or WiFi App | Electric Conversion Effiency | 98% |

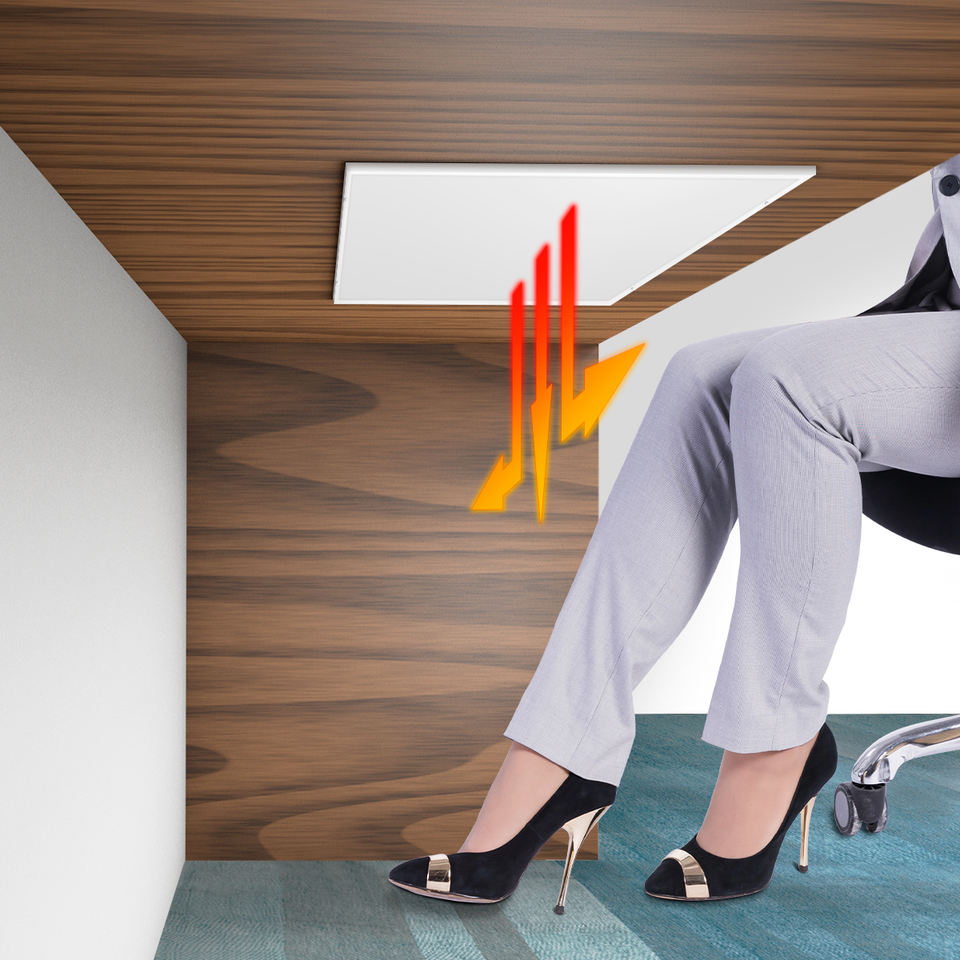

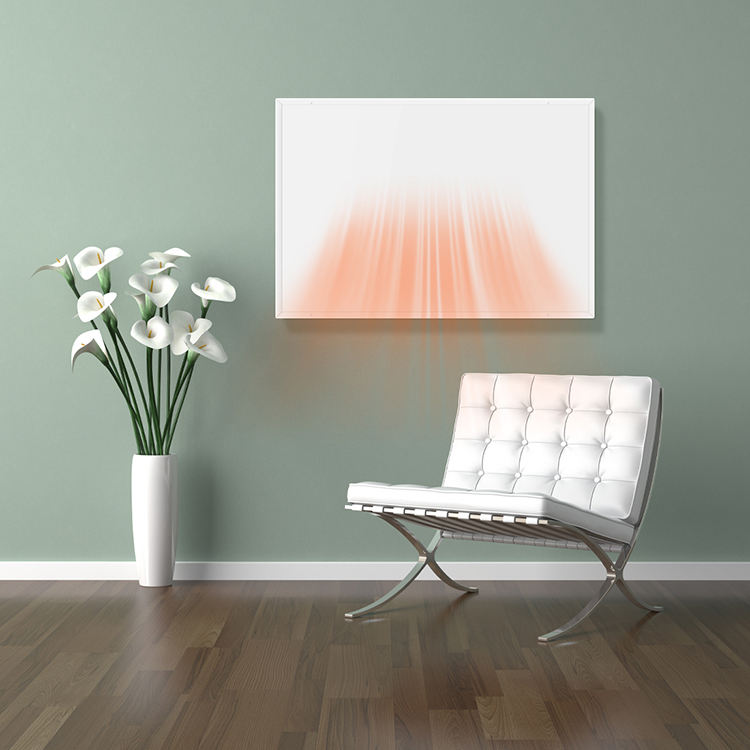

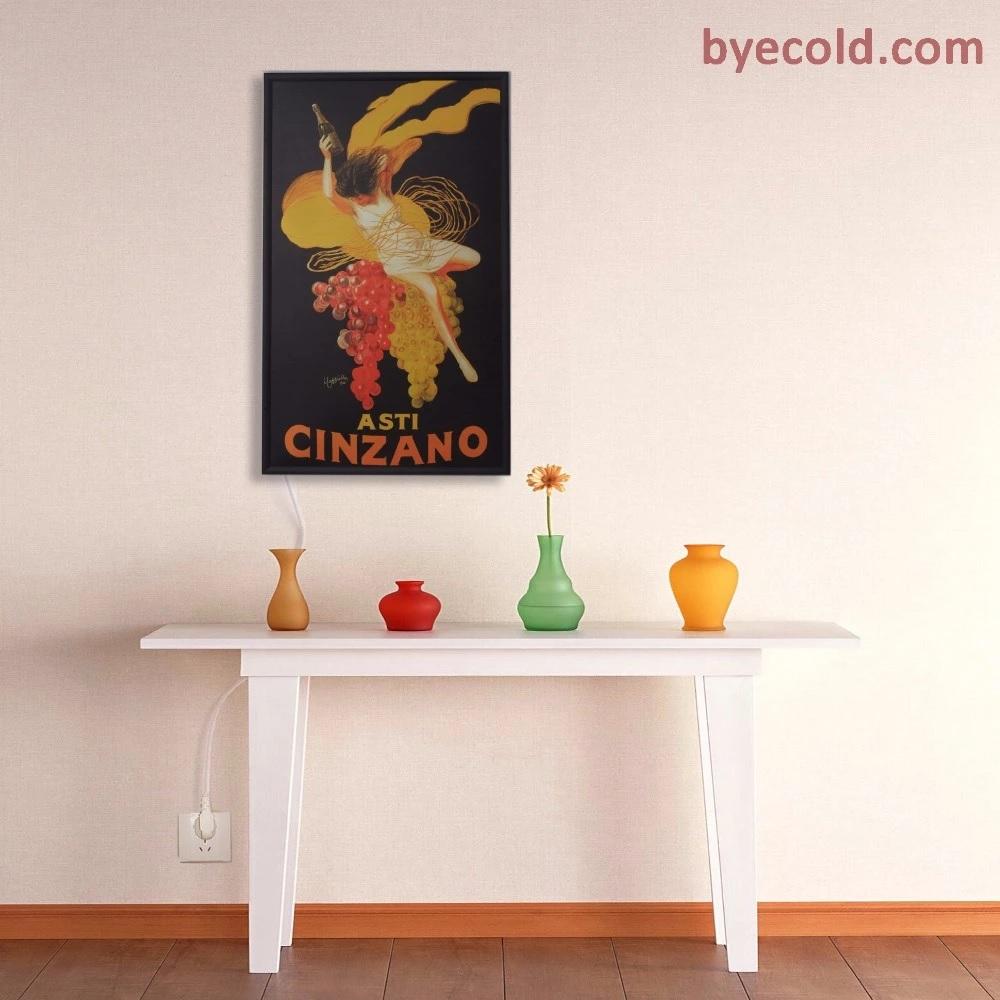

SCENE DISPLAY
