Description
PRODUCT DETAILS
1. The Infrared Panel Heater is designed to provide an efficient, comfortable and healthy heating system for any domestic and commercial users.
2. These panel heaters can reduce air circulation and help to maintain a clean, dust free environment.
3. Idea for both wall and ceiling installation
4. A wide range of heating panels available in a huge choice of colors, sizes and styles.
SPECIFICATION
| Available in a lot of different sizes and power | ||||||
| Model | Body size | Rated power (wall mounting) | Rated power (ceiling mounting) | Box size | N.W | G.W |
| F0606 | 595*595*25mm | 350W | 270W | 70*68*6cm | 4.55kg | 5.65kg |
| F0706 | 705*605*25mm | 450W | 320W | 80*68*6cm | 5.15kg | 6.35kg |
| F1006 | 1005*605*25mm | 580W | 450W | 110*68*6cm | 6.95kg | 8.5kg |
| F1206 | 1195*595*25mm | 700W | 550W | 130*68*6cm | 8.3kg | 10.25kg |
| F1207 | 1205*755*25mm | 900W | 700W | 130*83*6cm | 10.5kg | 12.8kg |
| F1209 | 1205*905*25mm | 1100W | 800W | 130*98*6cm | 13.4kg | 15.9kg |

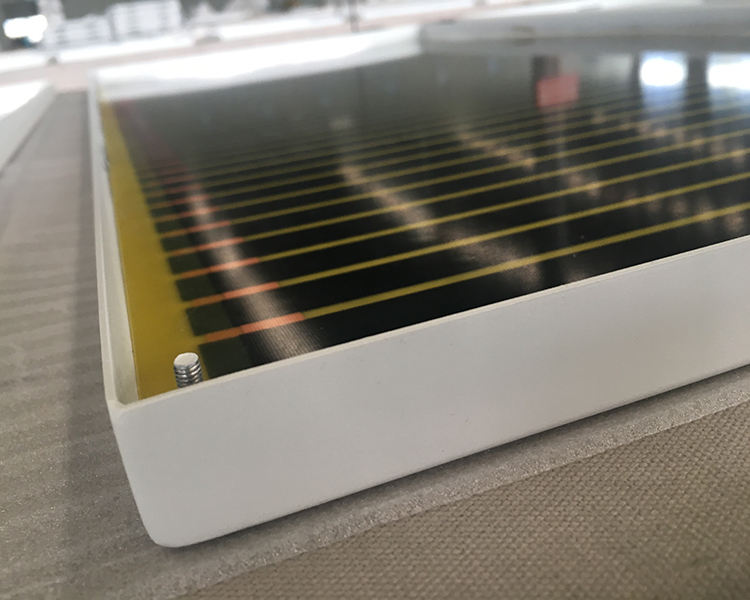

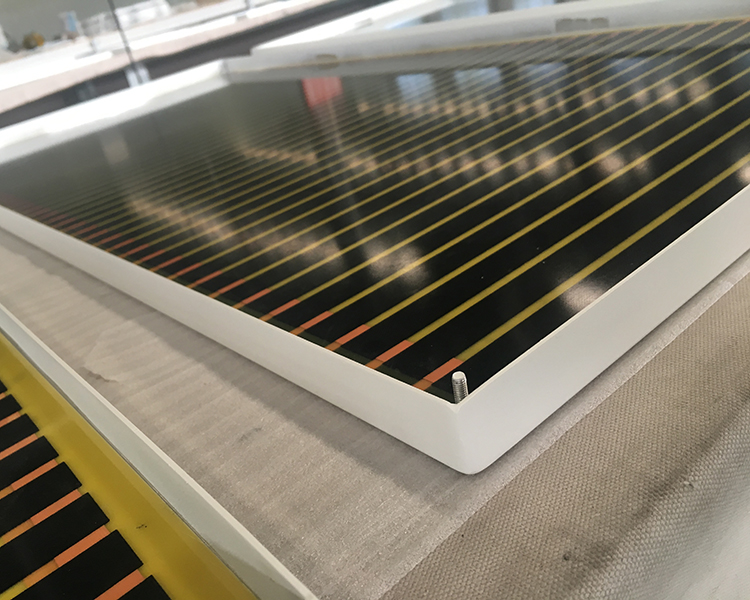

| Features | 1)Heating element: Carbon crystal 2)Surface temperature: mainly 75-95℃ 3)Electric conversion efficiency: 98% 4)Surface: IR coating Aluminium sheet 5)Frame: frameless 6)Back material: aluminum sheet 7)Ingress protection ration: IP54 8)Over heat protection: Yes 9)On/Off switch:No 10)Default cable length: 1.9m 11)Certification: CE,RoHS,SAA,TUV GS 12)Warranty:5 YEARS | |||||

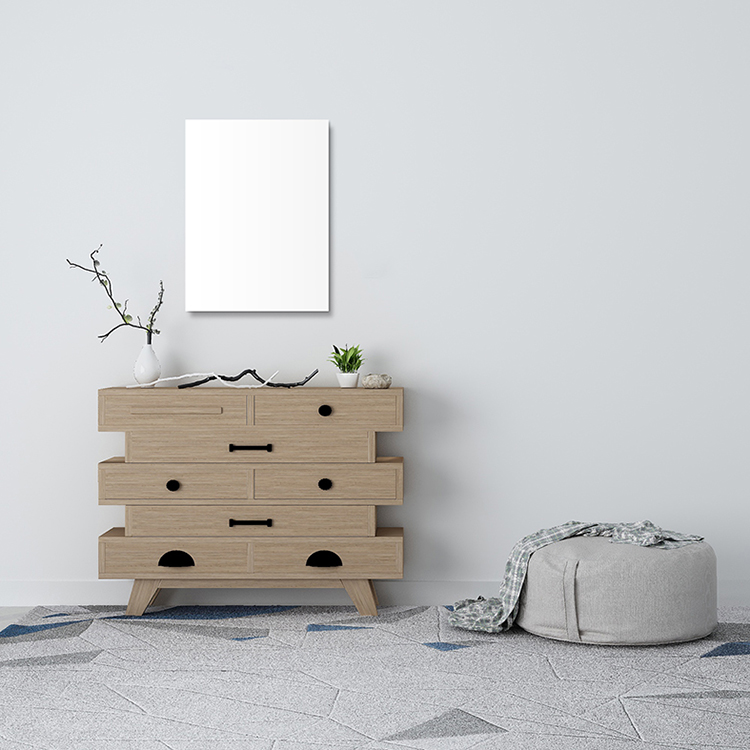

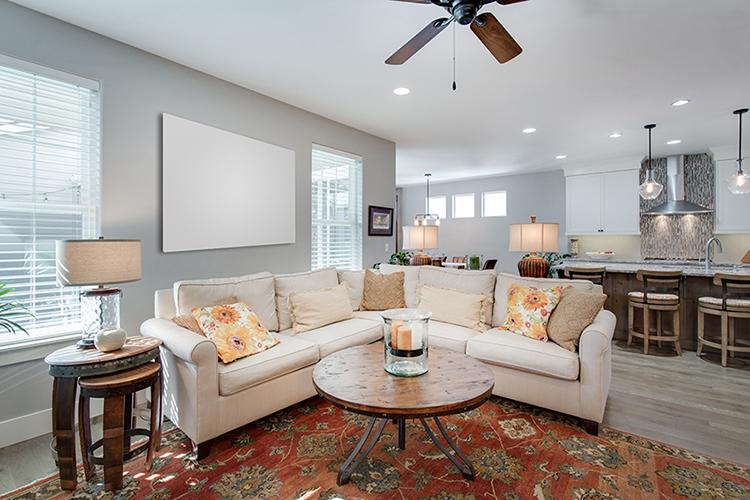

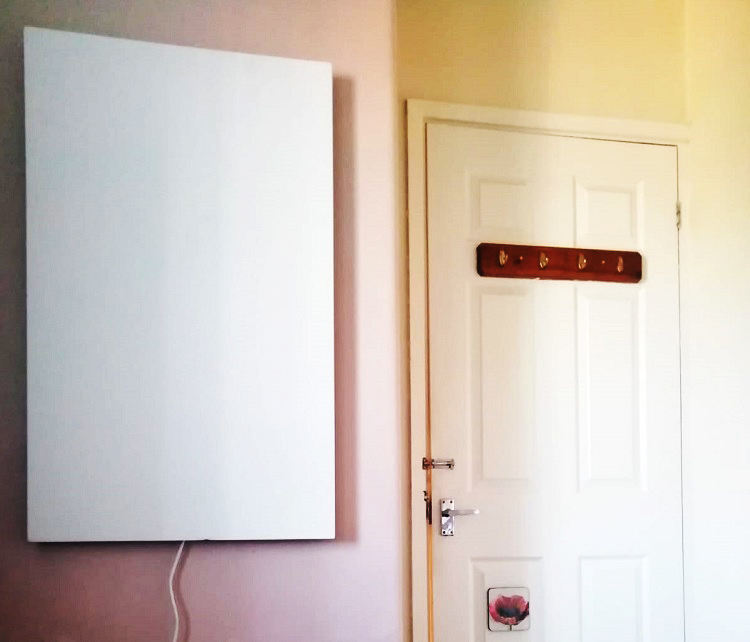

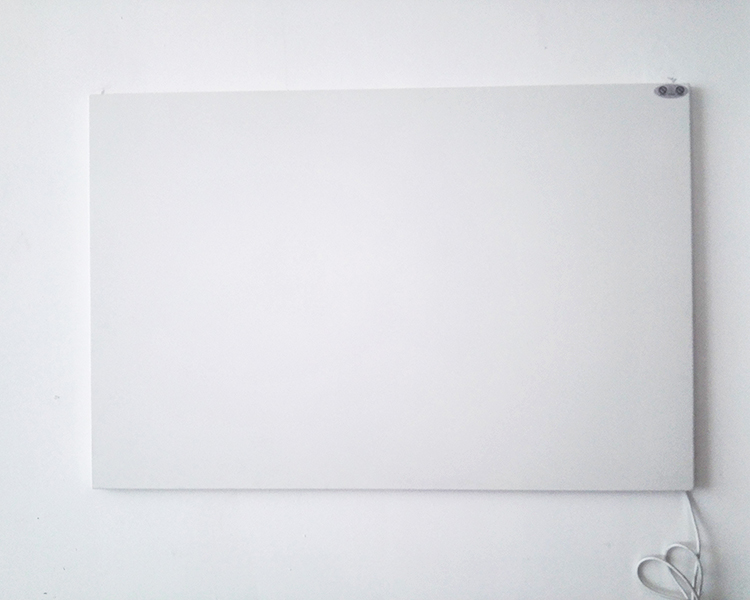

SCENE DISPLAY
