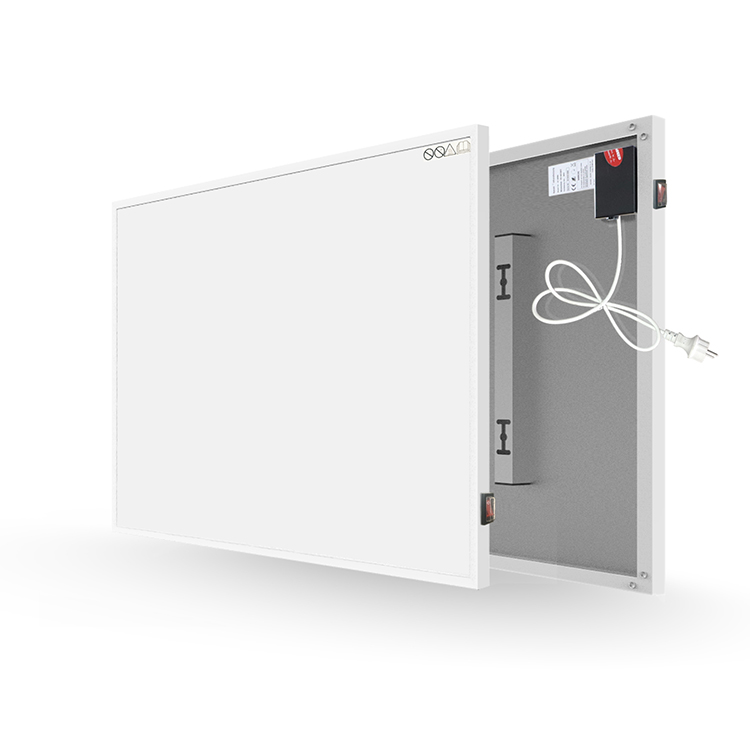

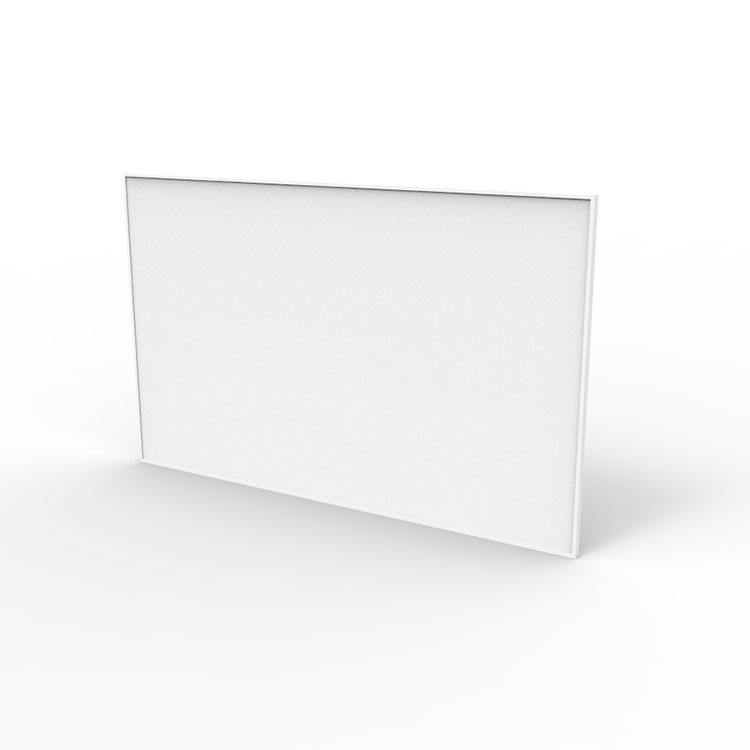

Infrared panel heaters with IR ceramic coating surface
Infrared panel heaters with IR ceramic coating surface - Image 2
Infrared panel heaters with IR ceramic coating surface - Image 3
Infrared panel heaters with IR ceramic coating surface - Image 4

  • MODEL NUMBER:GT-A1209P
  • WARRANTY:5 years
  • POWER SOURCE:Electric
  • VOLTAGE:220V-240V
  • SIZE:1205*905Mm
  • POWER:1100W
  • INSTALLATION:Wall Mounted
SKU: GT-A1209P Category: Tags: , ,

Description

PRODUCT DETAILS

HEATING METHOD :

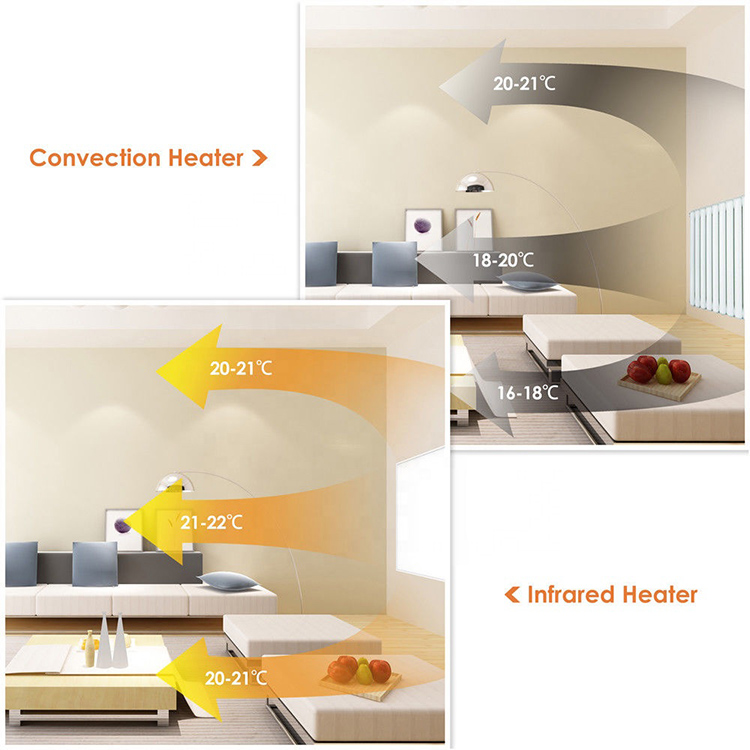

Infrared heating is an indirect heating method that simulates solar heat by not heating room air, unlike conventional convection heating, they can release the stored thermal energy evenly into the room, so it gives you a warm feeling like sunlight and maintain a clean, dust free environment.

MATERIAL :

Infrared heating is an indirect heating method that simulates solar heat by not heating room air, unlike conventional convection heating, they can release the stored thermal energy evenly into the room, so it gives you a warm feeling like sunlight and maintain a clean, dust free environment.



SIMPLE INSTALLATION :

The heating panel is ready for immediate use, no complex installation, mounting kits also included. Suitable for domestic and commercial users.



SAFETY :

No pipes, chimneys, potential gas, oil or water leaks. Byecold infrared heater has Overheat Protection (Auto-power Off when the surface temperature is too high). Our heating panels comply with all European safety standards (ROHS, CE , GS and TüV).

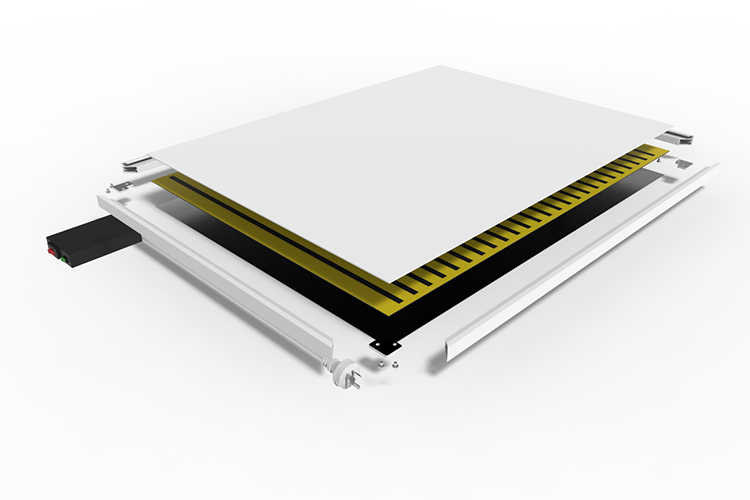

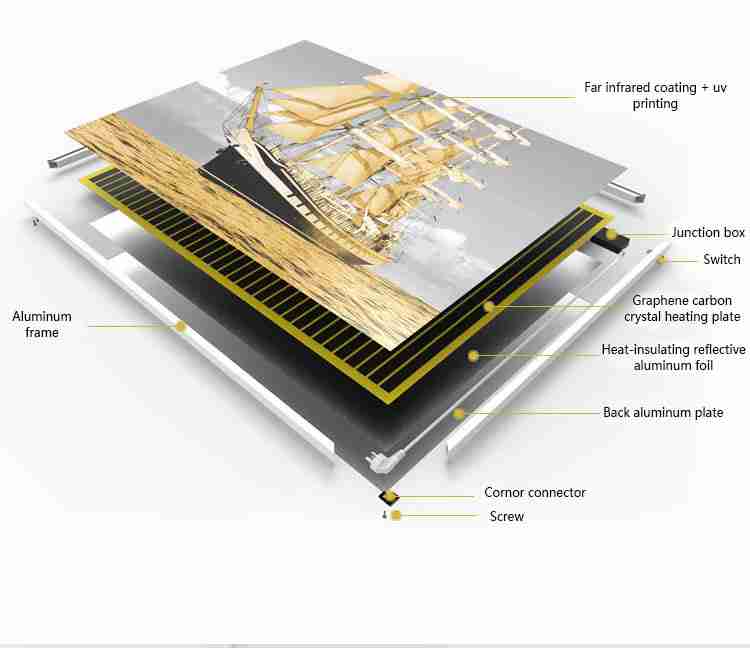

Structure of A series

Surface.

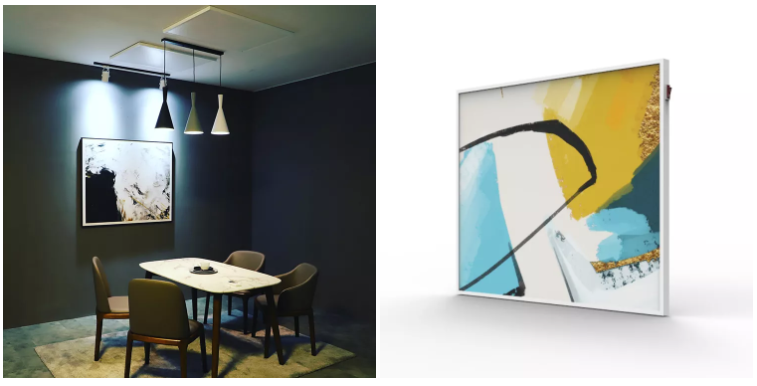

The surface of A series can be IR Ceramic coating, Aluminum Sheet ,UV printing pictures

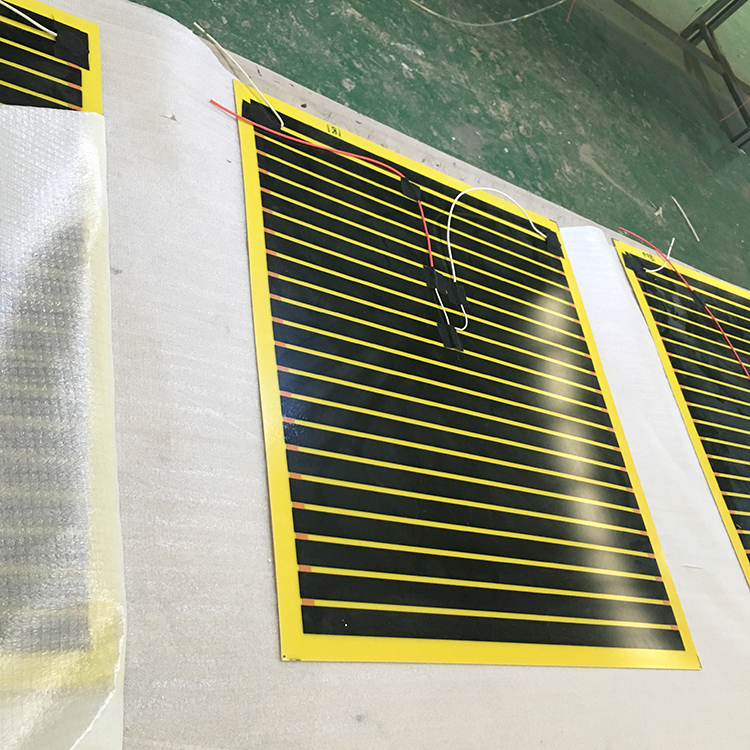

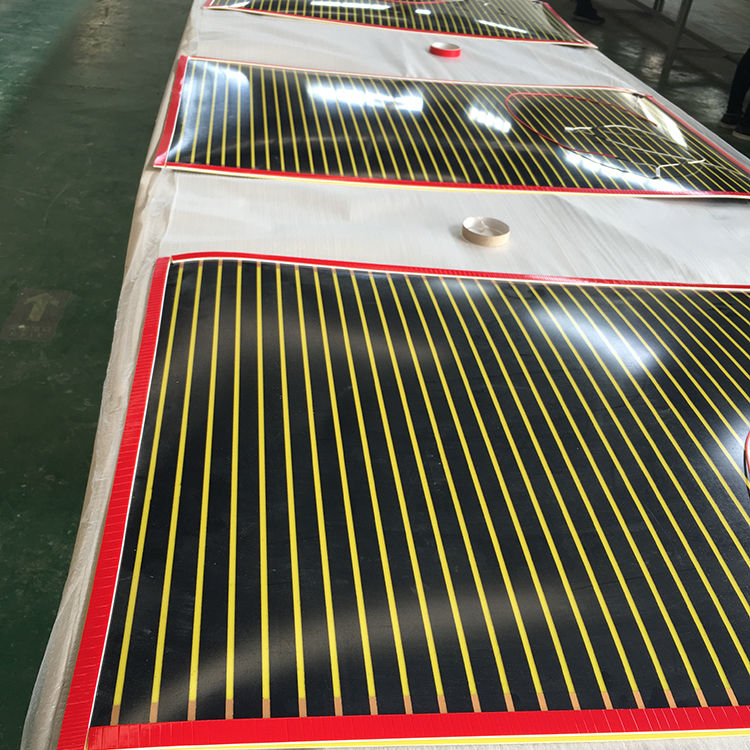

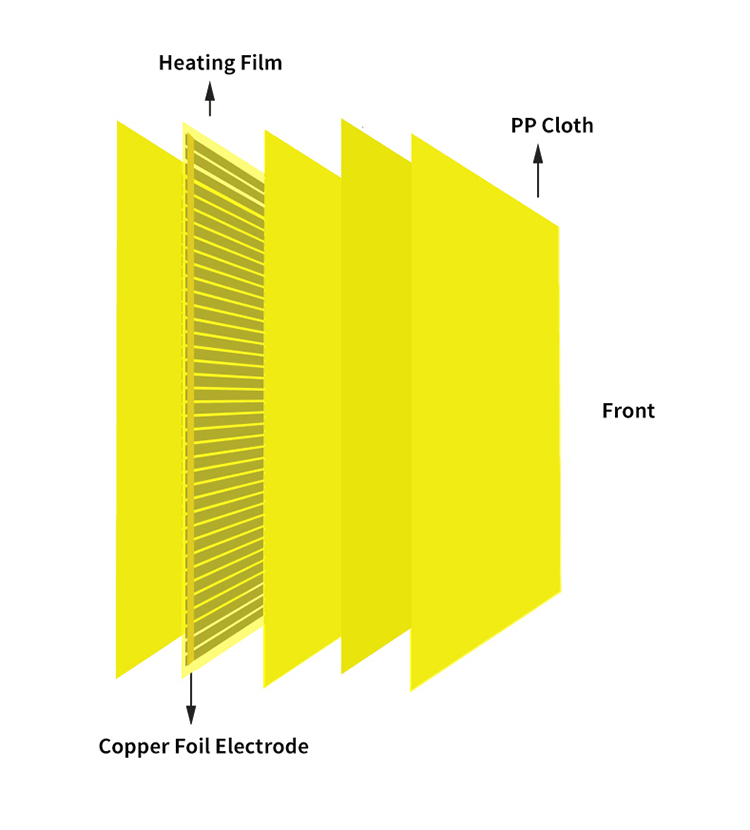

Heating Element: carbon crystal heating film

The carbon crystal heating system can warm your space quickly in few minutes; the aluminum sheet surface keeps the good heat storage capacity.
Overheat Protection: Temperature Limiter (125 degrees for wall, 145 degrees for ceiling)

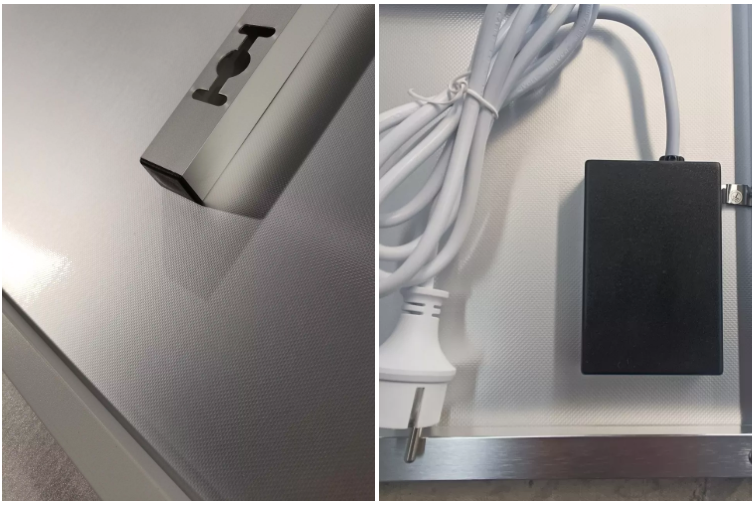

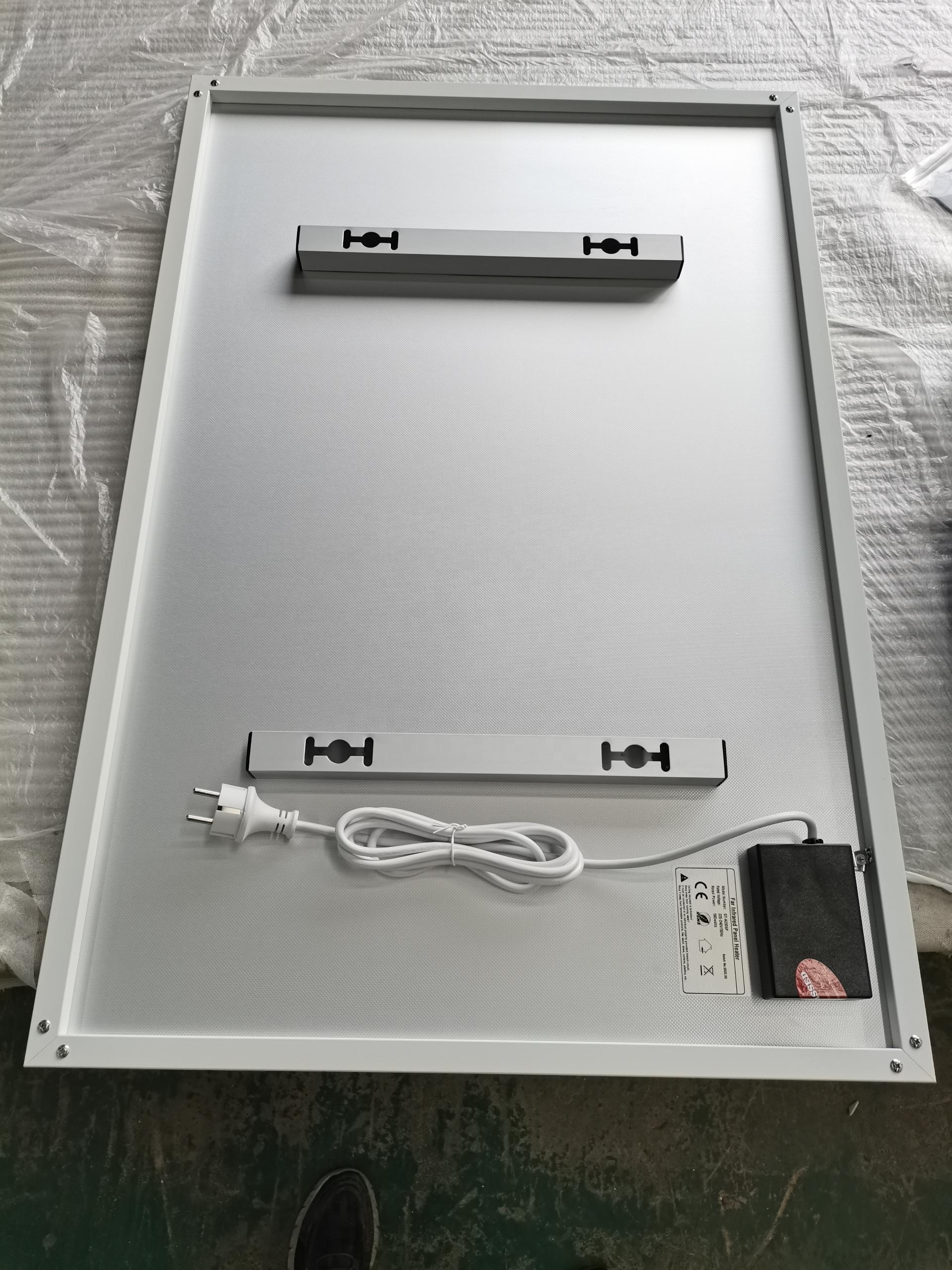

Back Material: Clad steel sheet + Aluminum mounting bracket+ junction box



There is 3mm air space between the heating film and back sheet as the insulation.
Each panel have two aluminum mounting brackets, the length is difference for different size panel.


SPECIFICATION



Available in a lot of different sizes and power
Model Number
Body Size
Rated power
(wall mounting)
Rated power
(ceiling mounting)
Box size
A0605
605*505*22mm
300W
240W
70*58*6cm
A0606
605*605*22mm
350W
270W
70*68*6cm
A0706
705*605*22mm
450W
320W
80*68*6cm
A0906
905*605*22mm
580W
400W
90*68*6cm
A1206
1205*605*22mm
700W
550W
130*68*6cm
A1207
1205*755*22mm
900W
700W
130*83*6cm
A1209
1205*905*22mm
1100W
800W
130*98*6cm
A1806
1805*605*22mm
1150W
800W
190*68*6cm







Features
Input Voltage: 220-240V/50Hz
Wave Length: 8-15μ
Heating element: Carbon Crystal
Surface temperature: Main 75-95℃
Electric conversion efficiency: 98%
Frame: White\Black\Sliver Aluminum

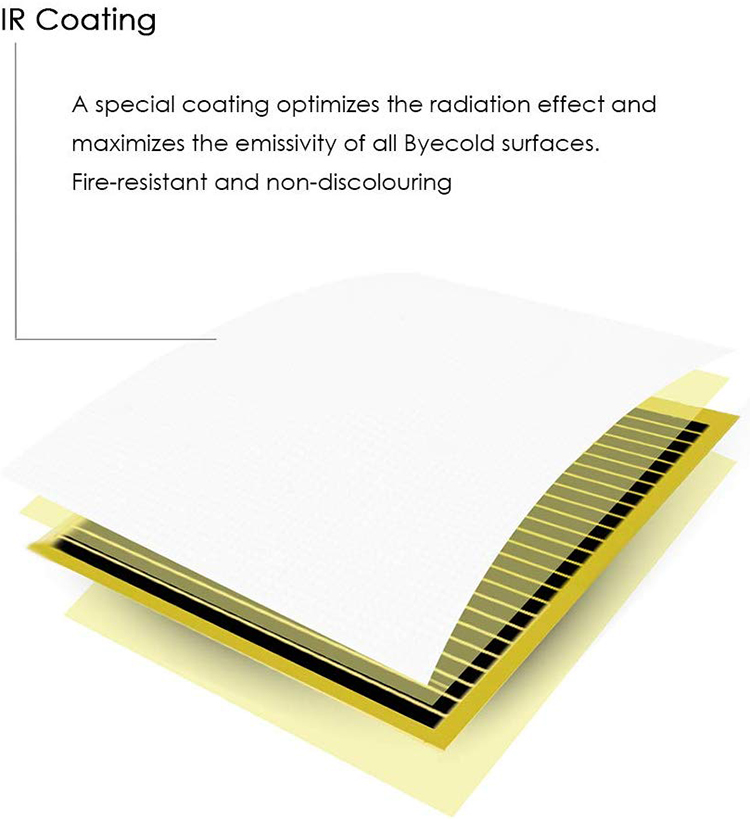

Front Surface Material: IR Ceramic Coating
Back Material: Clad Steel Sheet
IP grade: IP54 (exclude plug)
Over heating protection:Yes
Power cord length: 1.9m excluding plug

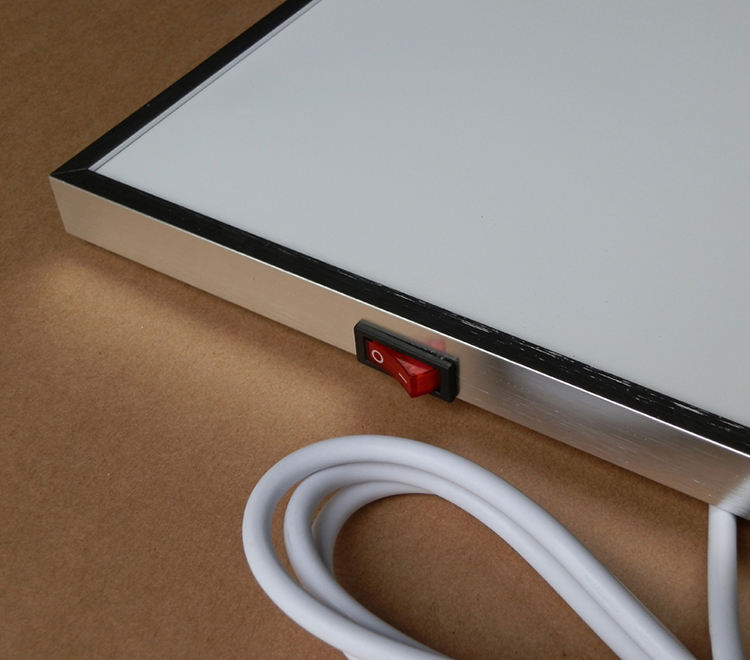

Optional: On/Off Switch, LED indicator
Certification:CE, RoHS, TUV, GS, SAA

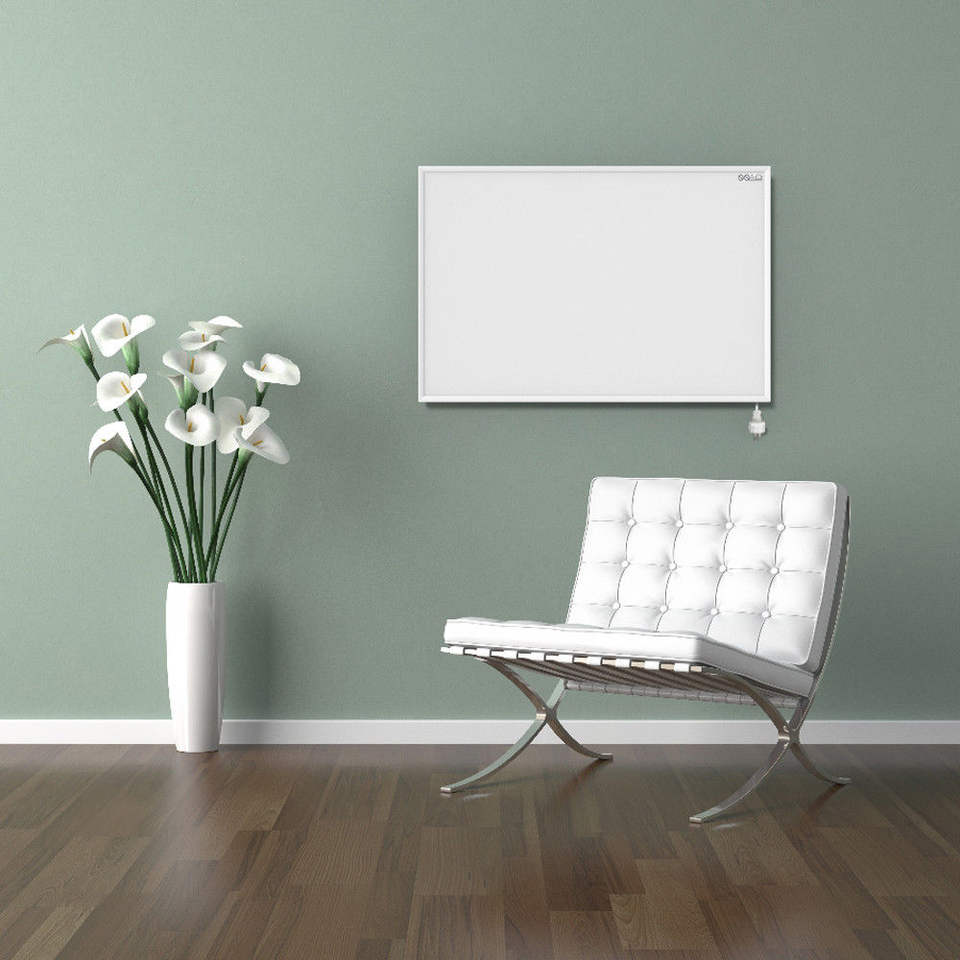

SCENE DISPLAY
