Description
PRODUCT DETAILS
Simple and Practicable Structure
This HL series has a simple but very structure. Product design solemn thick, massive and steady, more firm and durable. Surface can be printed with your own logo or preferred picture,really the first choice for space heating in household use. The new product is thinner, lighter and better IR efficiency than before, with same quality and performance. Different model, size, power and good price for choosing. Suitable for wall and ceiling installation.
HEATING METHOD

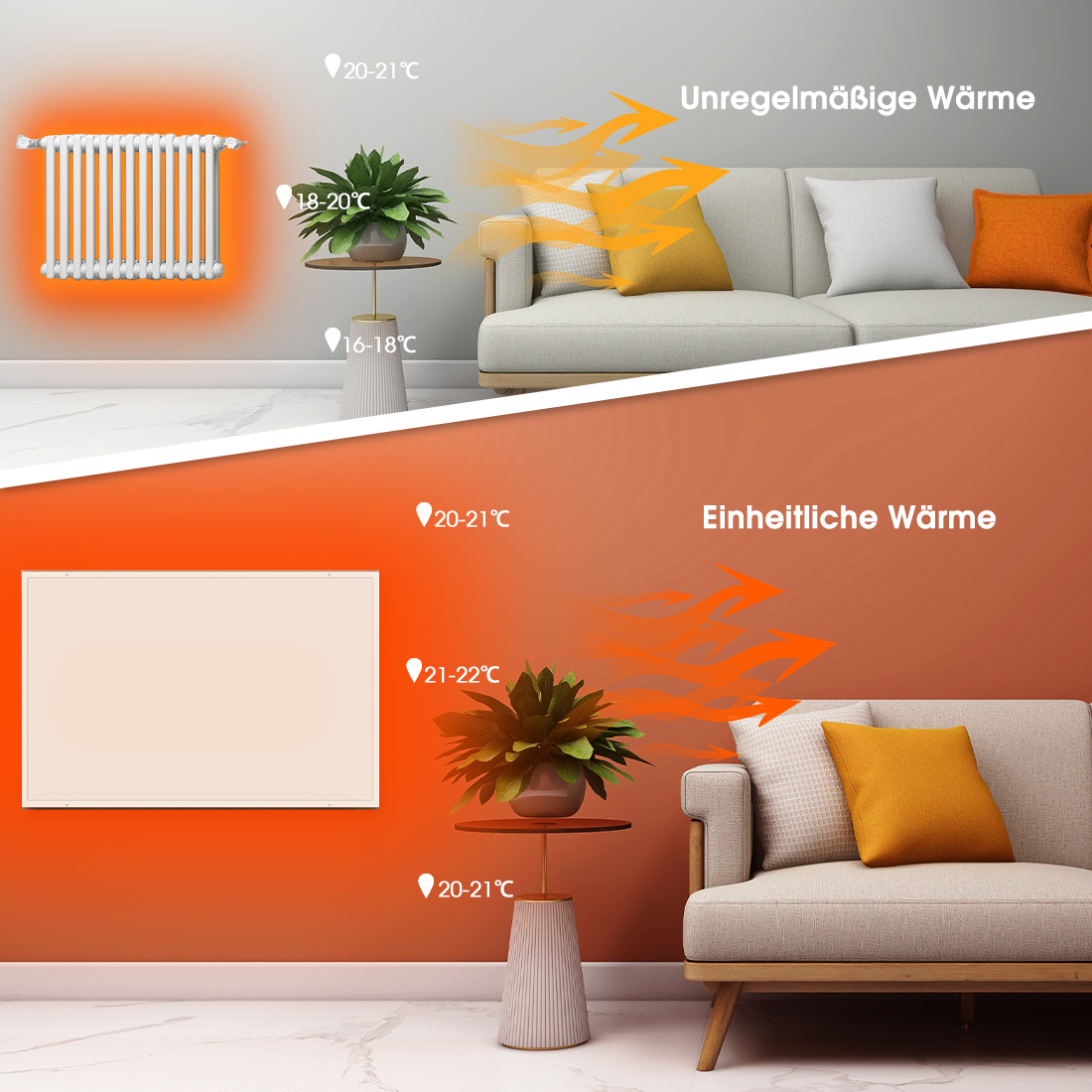

Infrared heating is an indirect heating method that simulates solar heat by not heating room air, unlike conventional convection heating, they can release the stored thermal energy evenly into the room, so it gives you a warm feeling like sunlight and maintain a clean, dust free environment..
SIMPLE INSTALLATION
The heating panel is ready for immediate use, no complex installation, mounting kits also included. Suitable for domestic and commercial users
SAFETY
No pipes, chimneys, potential gas, oil or water leaks. Byecold infrared heater has Overheat Protection (Auto-power Off when the surface temperature is too high). Our heating panels comply with all European safety standards (ROHS, CE , GS and Tü

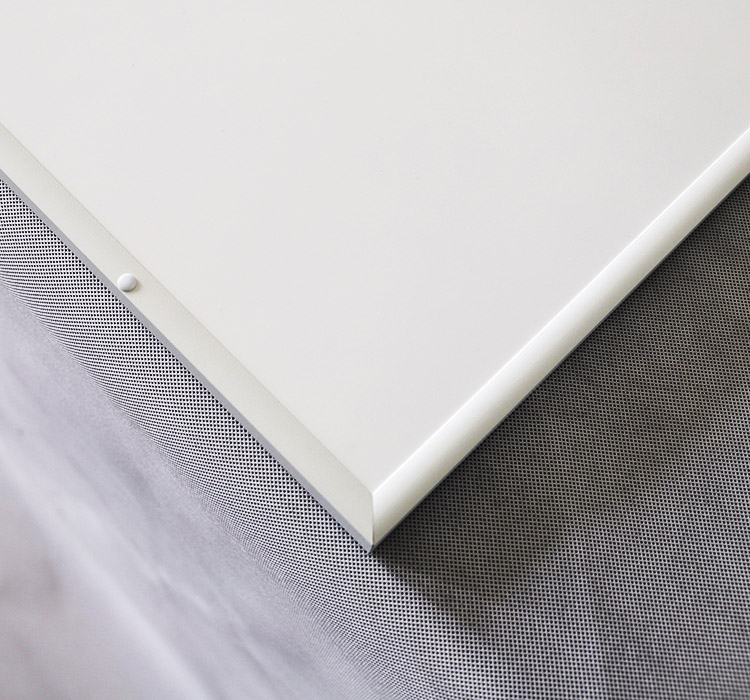

Perfect Corner/Diamond Cutting
The corners fit together perfectly, no any gap or metal burr.The solid connectors and the cambered surface of frame both make the structure more steady.

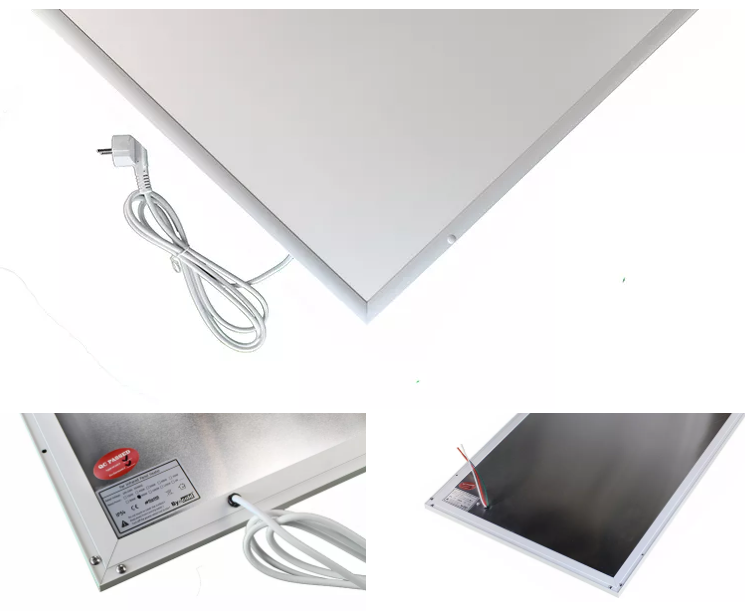

The power cable can be out from side frame or back of panel, or without power cord.

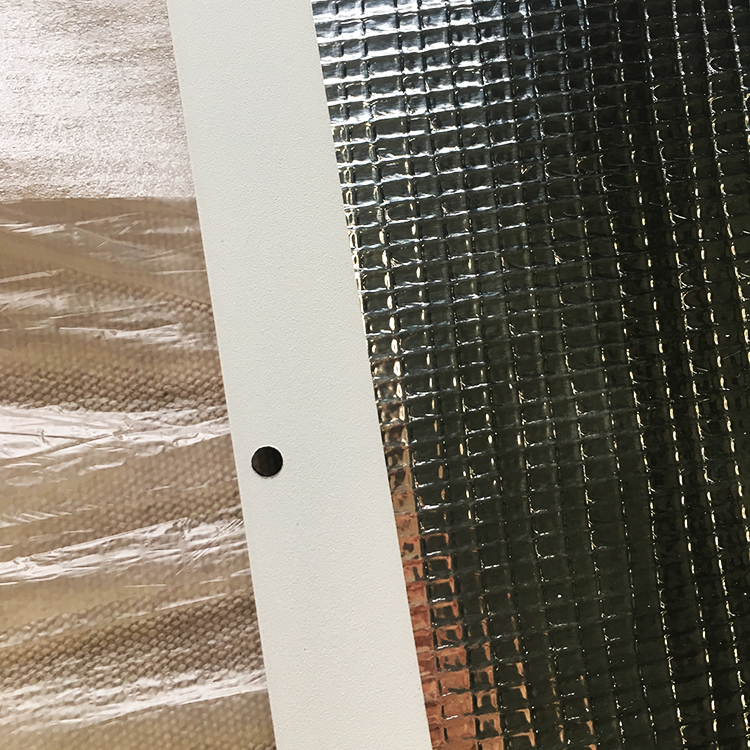

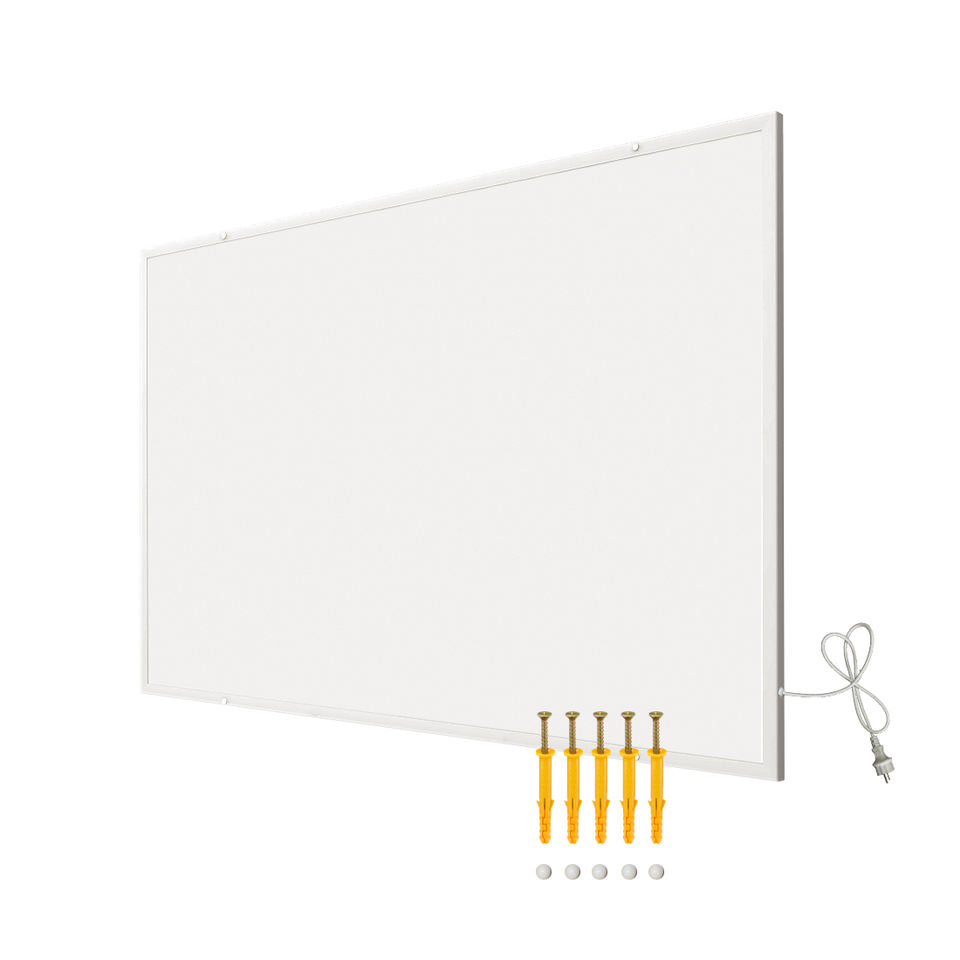

Easy mounting holes at Frame

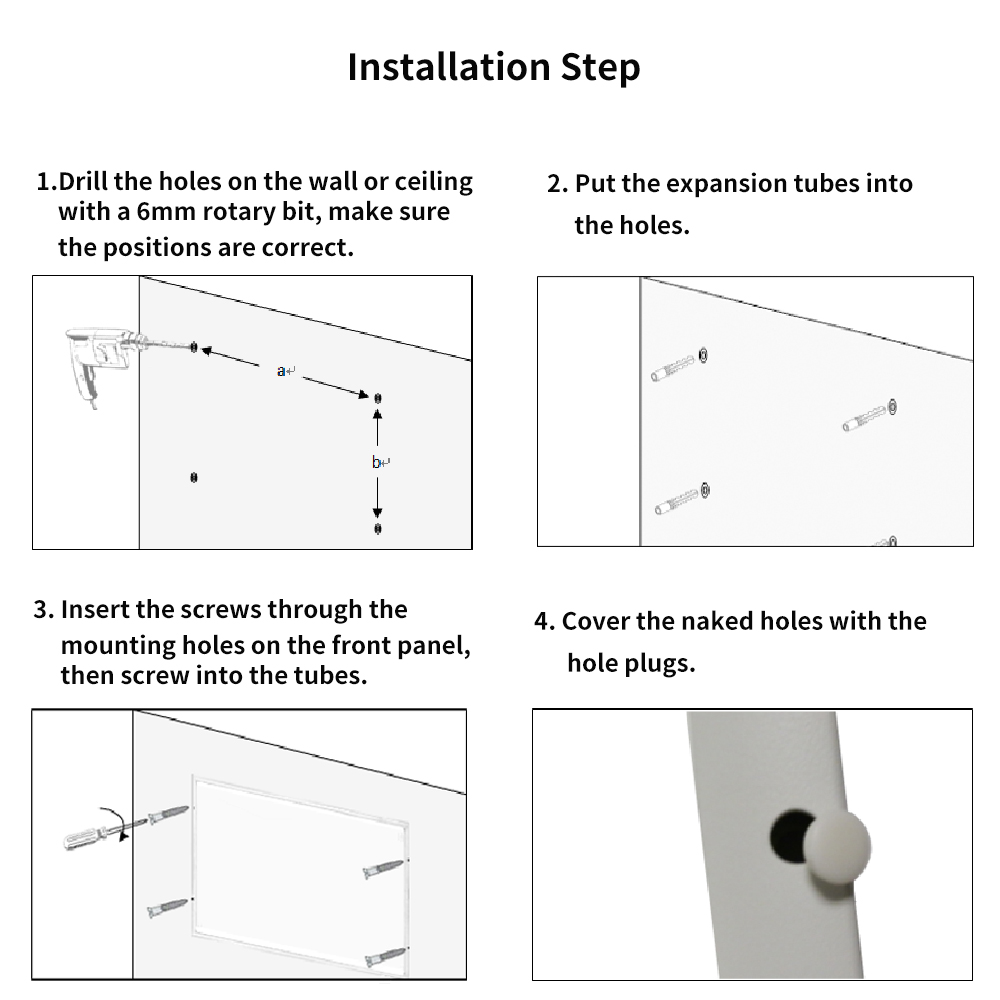

There is 4 mounting holes at the front frame for easily mounting, users can just punch holes on the wall according to the position of the mounting holes on frames and twist the screws directly.
Specification

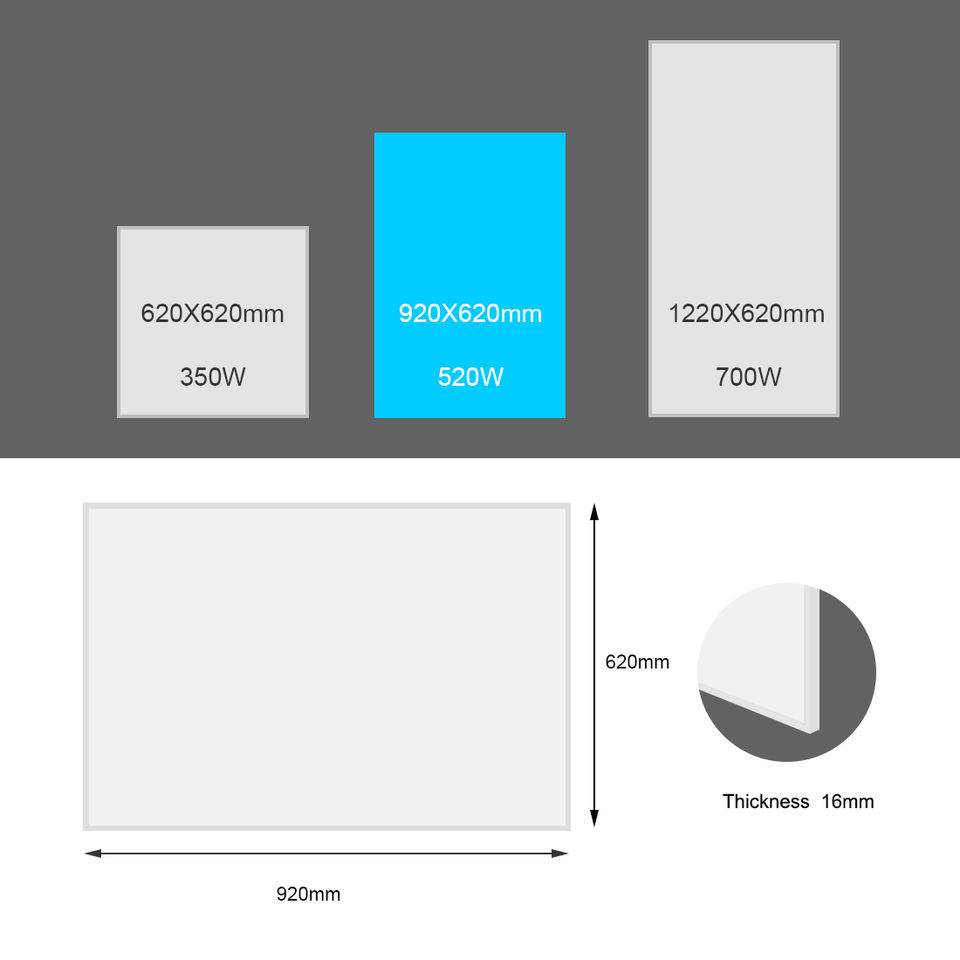

Available in a lot of different sizes and power | ||||
Model number | Size | Rated power (wall mounting only) | Rated power (wall/ceiling mounting) | Box size |
HL0605 | 620*520*15mm | 290W | 220W | 70*58*6cm |
HL0606 | 620*620*15mm | 350w | 270w | 70*68*6cm |
HL0706 | 720*620*15mm | 400w | 320w | 80*68*6cm |
HL0906 | 920*620*15mm | 520w | 450w | 110*68*6cm |
HL1206 | 1220*620*15mm | 700w | 550w | 130*68*6cm |
HL1207 | 1220*770*25mm | 820w | 650w | 130*83*6cm |
HL1209 | 1220*920*15mm | 1050w | 800w | 130*98*6cm |
Features | ||||

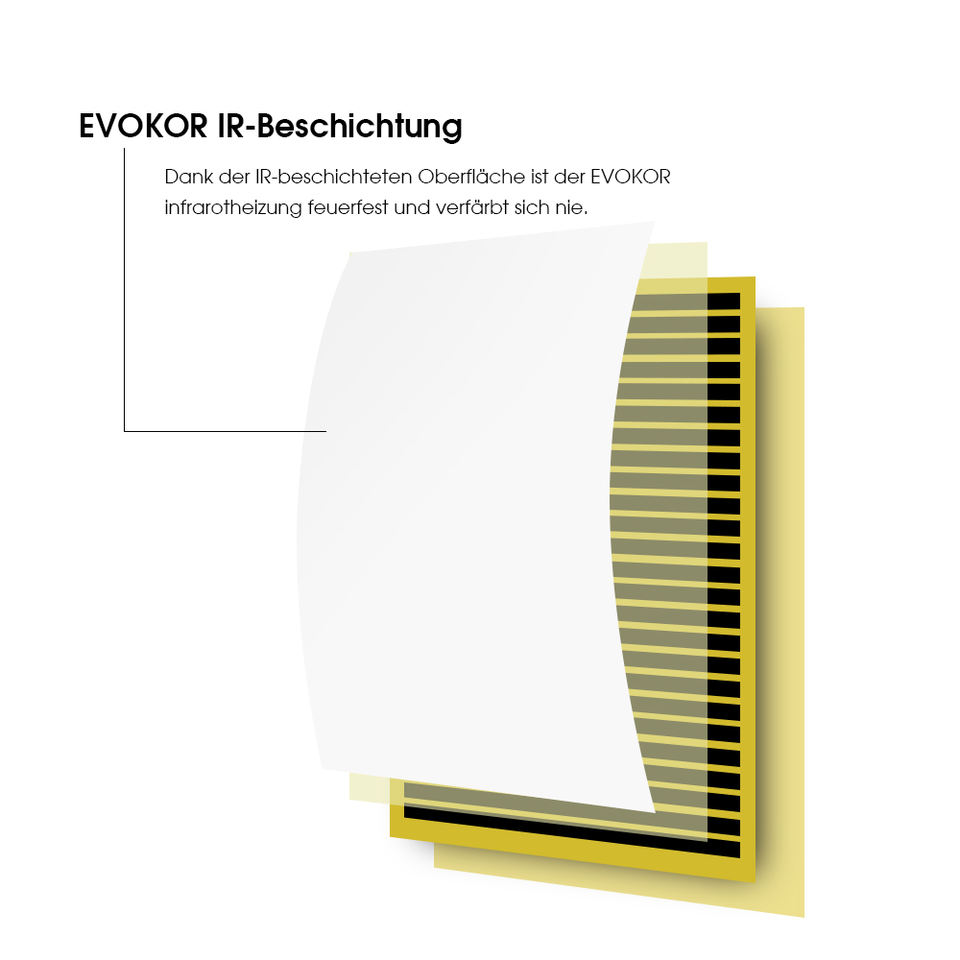

Surface temperature | Mainly 80-100℃ | Surface material | IR ceramic coating | |
Ingress protection ration | IP54 | Frame | White Aluminum | |
Certification | CE,RoHS,SAA | Voltage Input | 220-240V/50HZ | |
Warranty | 5 years | Heating element | Caborn crystal | |
Other sizes also available | ||||

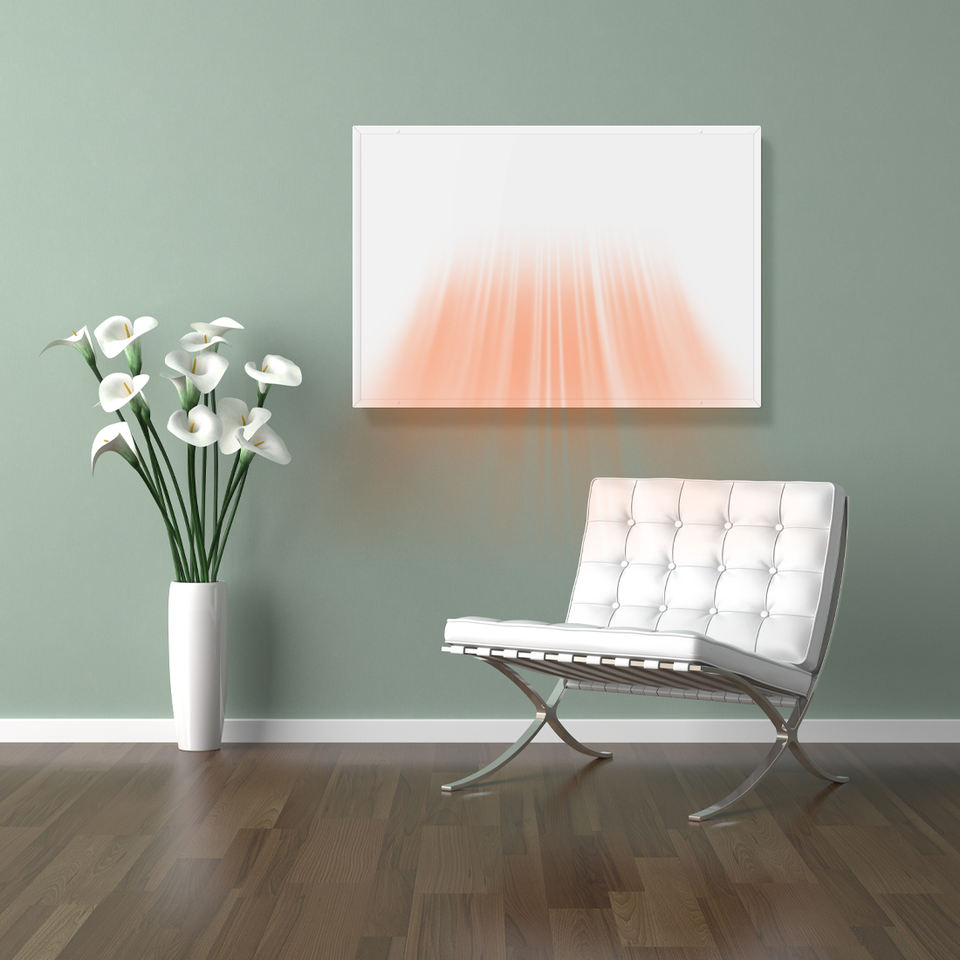

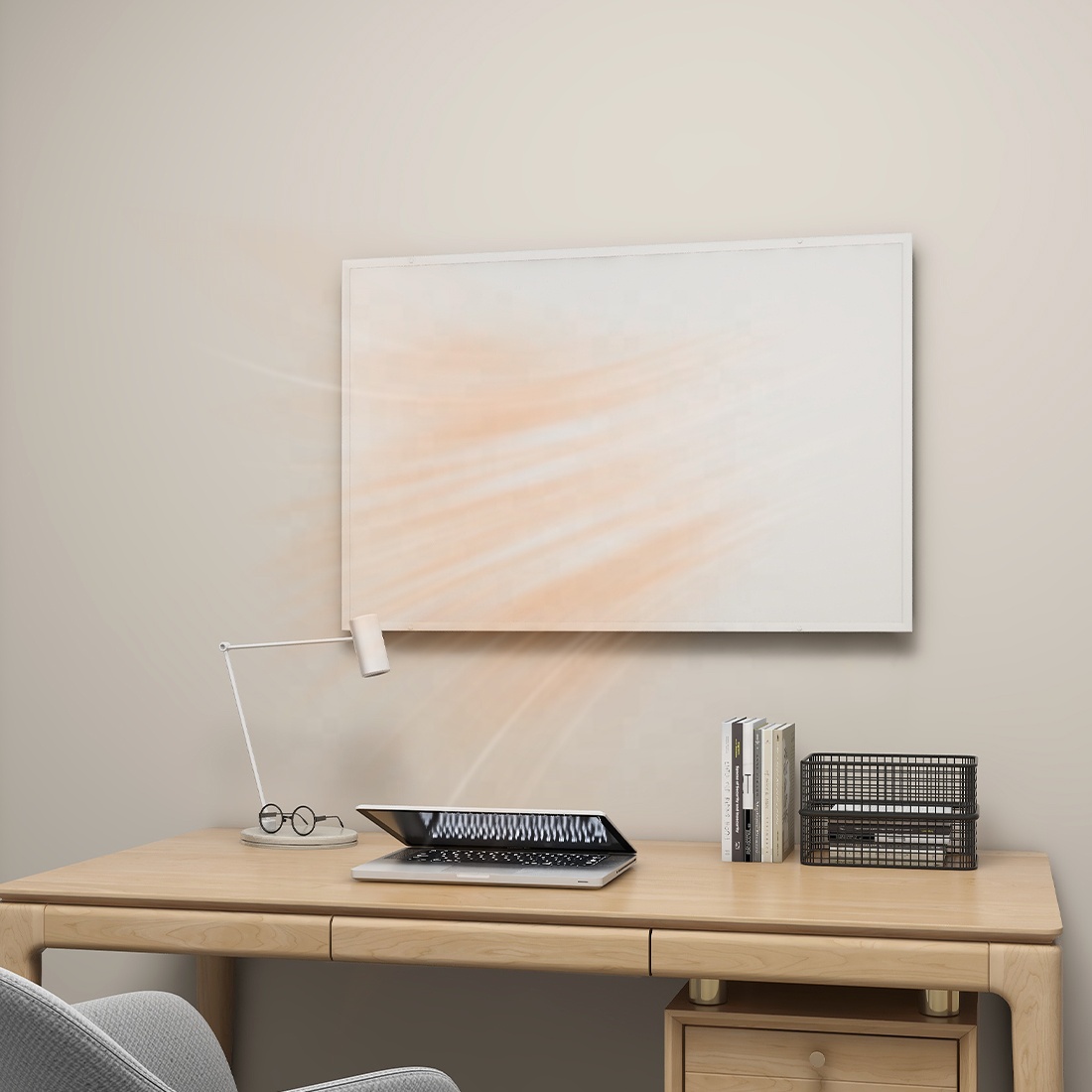

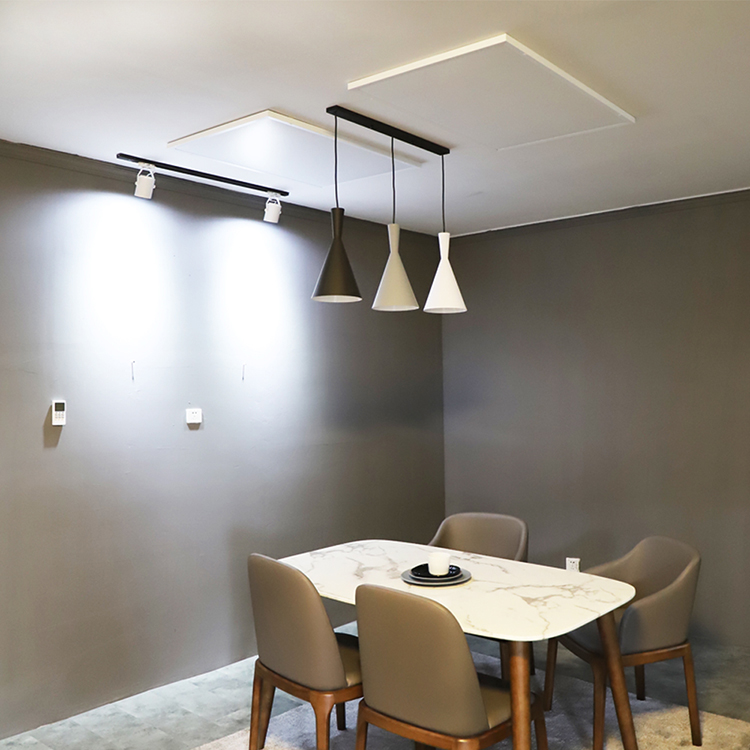

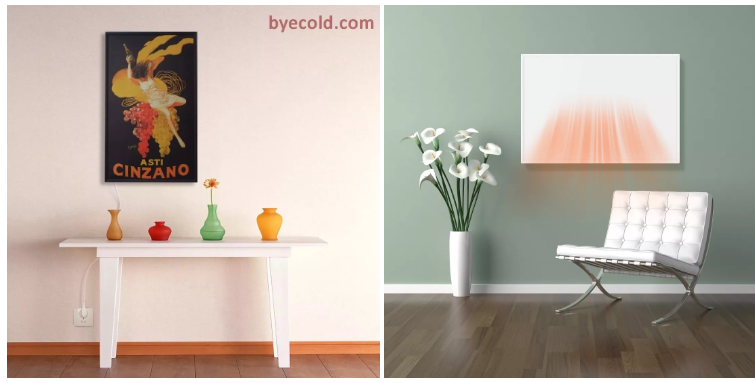

SCENE DISPLAY
