Description

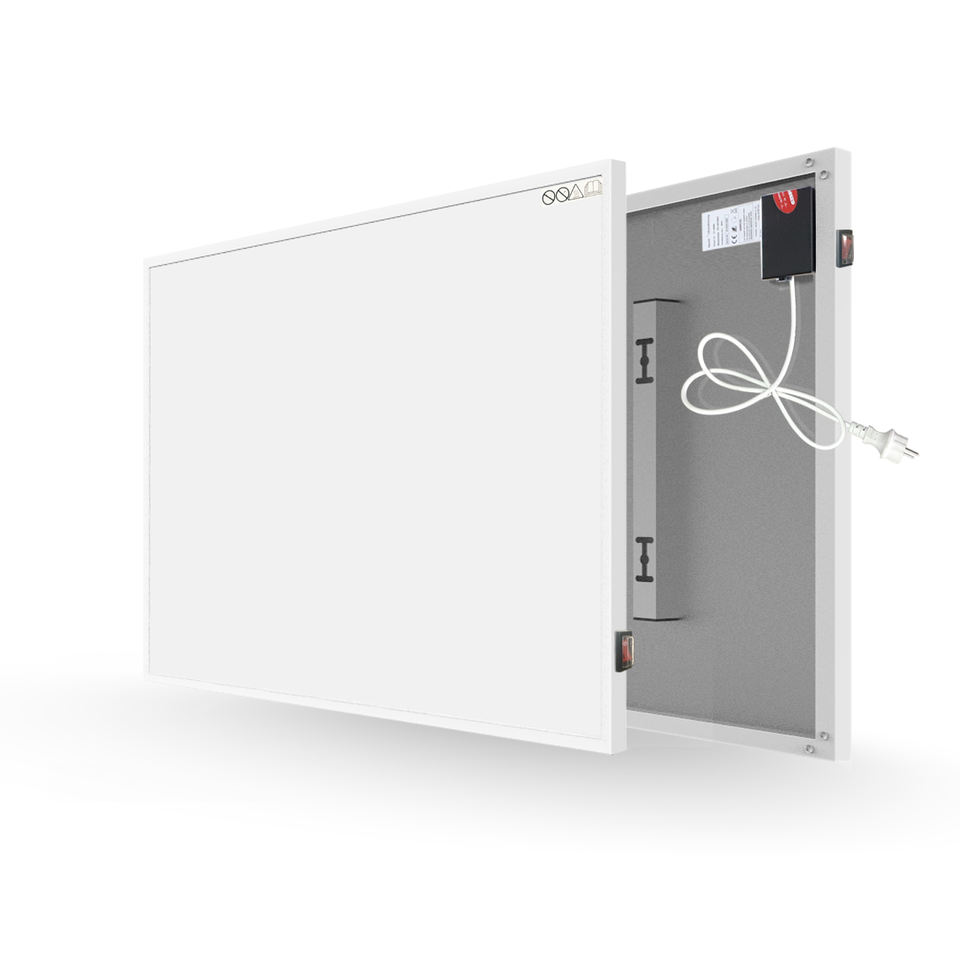

PRODUCT DETAILS

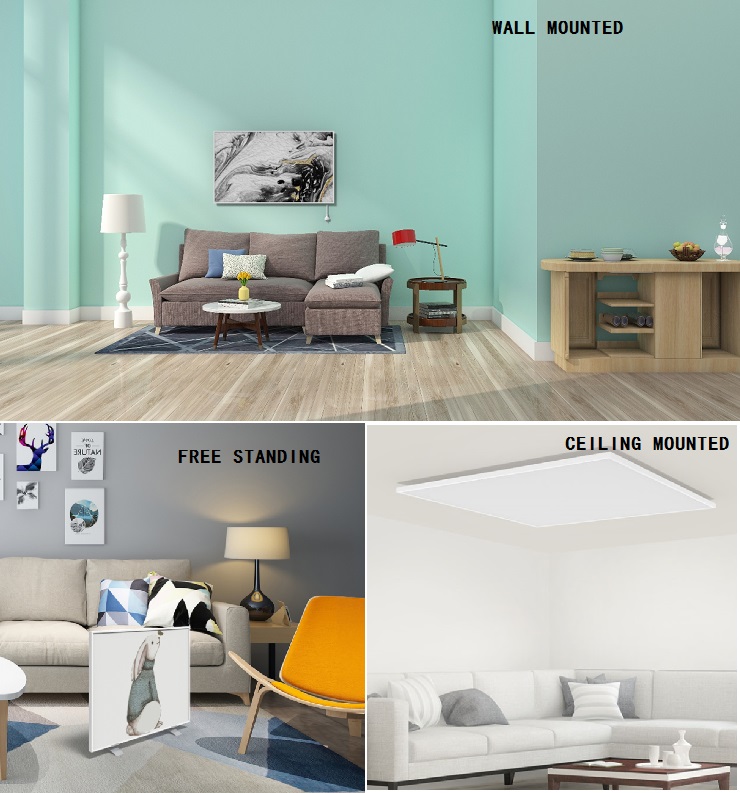

Different Installation
Option 1: Wall mounted
Option 2: Ceiling Mounted
Option 3: Floor standing.
SPECIFICATION
Model No. | Diemension | Rated power (ceiling mounting) | Rated power (wall mounting) |
A0605 | 605*505*22mm | 240W | 300W |
A0606 | 605*605*22mm | 270W | 350W |
A0706 | 705*605*22mm | 320W | 450W |
A0906 | 905*605*22mm | 400W | 580W |
A1206 | 1205*605*22mm | 550W | 700W |
A1207 | 1205*755*22mm | 700W | 900W |
A1209 | 1205*905*22mm | 800W | 1100W |
Technical Parameters | |||

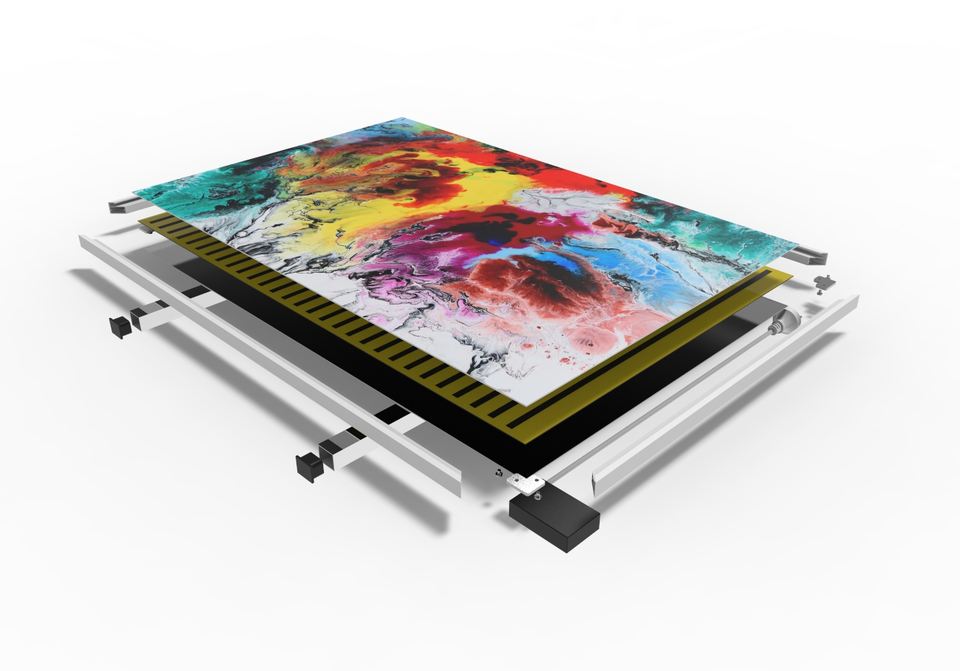

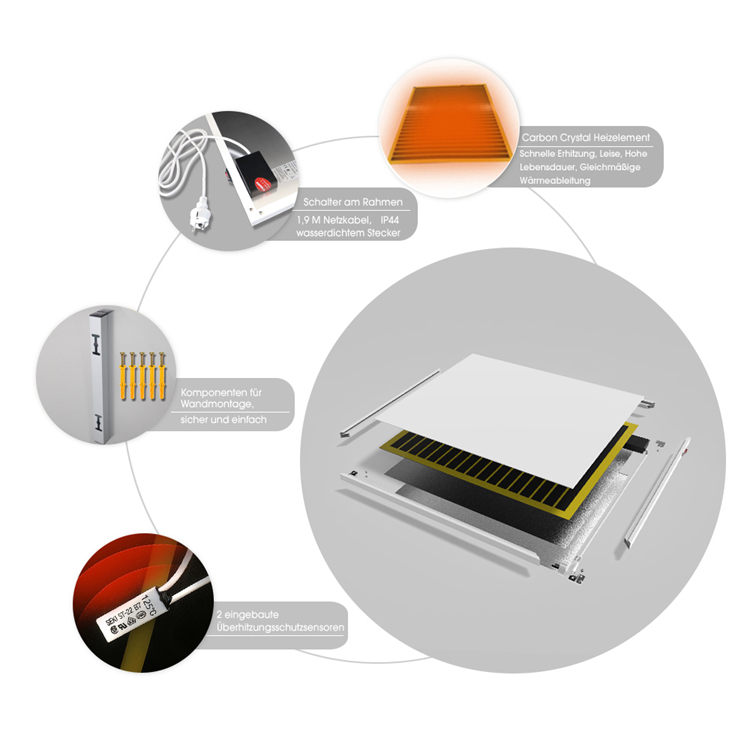

Heating Element | Carbon Crystal | Ingress Protection Rating | IP54 |
Wave length | 8~15μm | Warranty | 5 Years |
Surface Temperature | Around 75~95 Centigrade/ 167~203 Fahrenheit | Over Heat Protection | Yes |
Back Material | Aluminium | Frame | Aluminum |

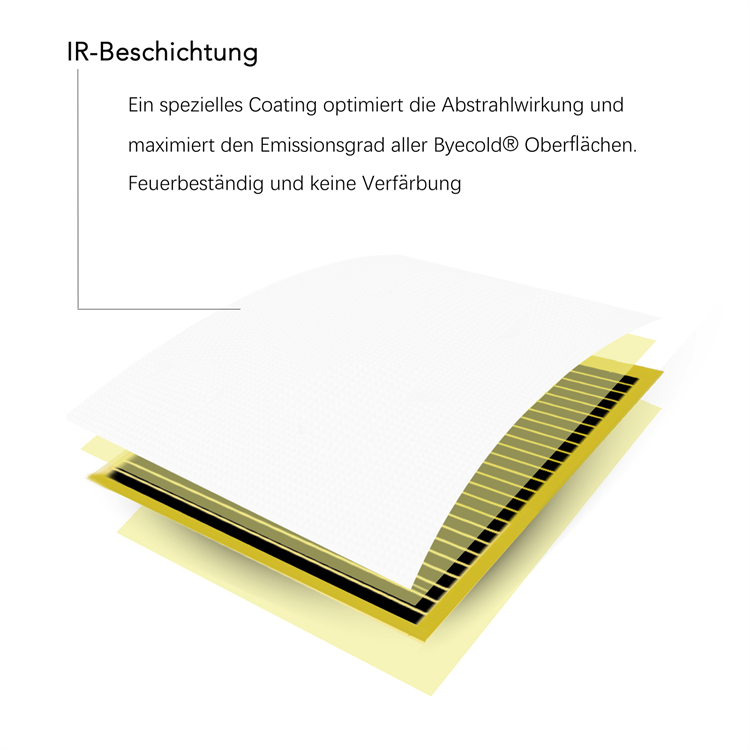

Surface Material | IR Ceramic Coating | Plug in | Yes |
Installation | Wall mounted, Ceiling mounted, Floor standing | Optional | On/Off switch, LED indicators |
Certificates | CE,RoHS,SAA, GS, TUV | Default Cable Length | 1.9 Meters |

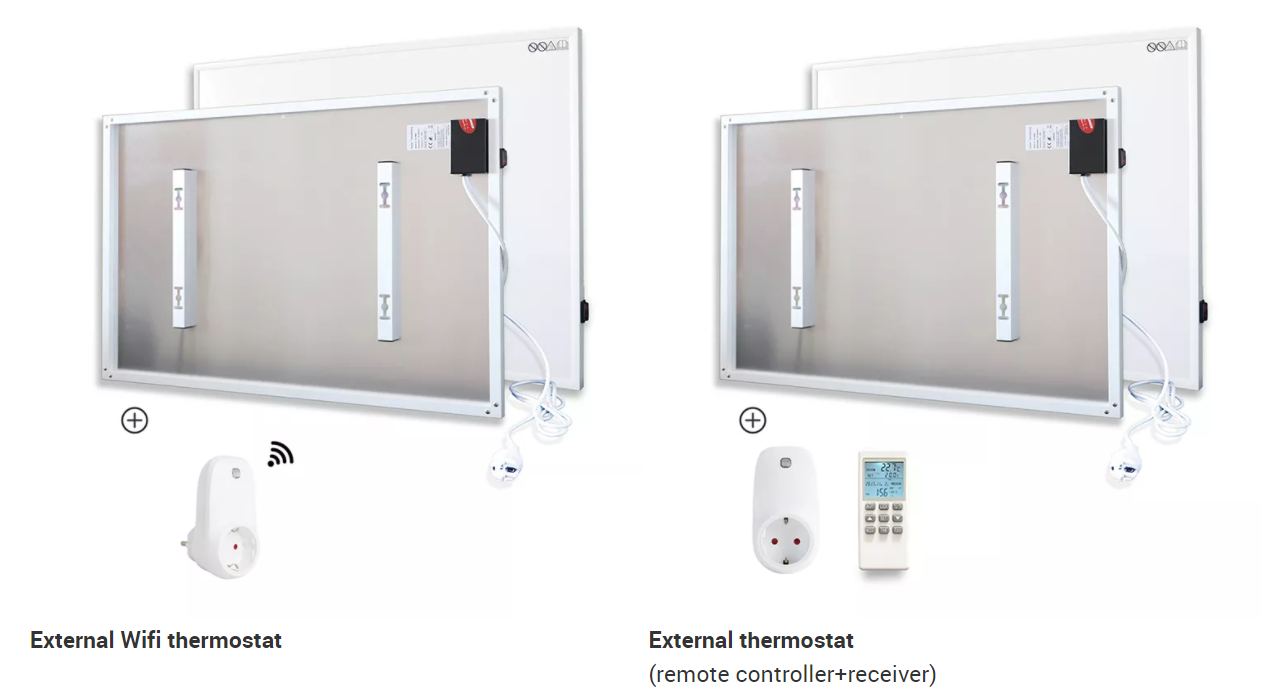

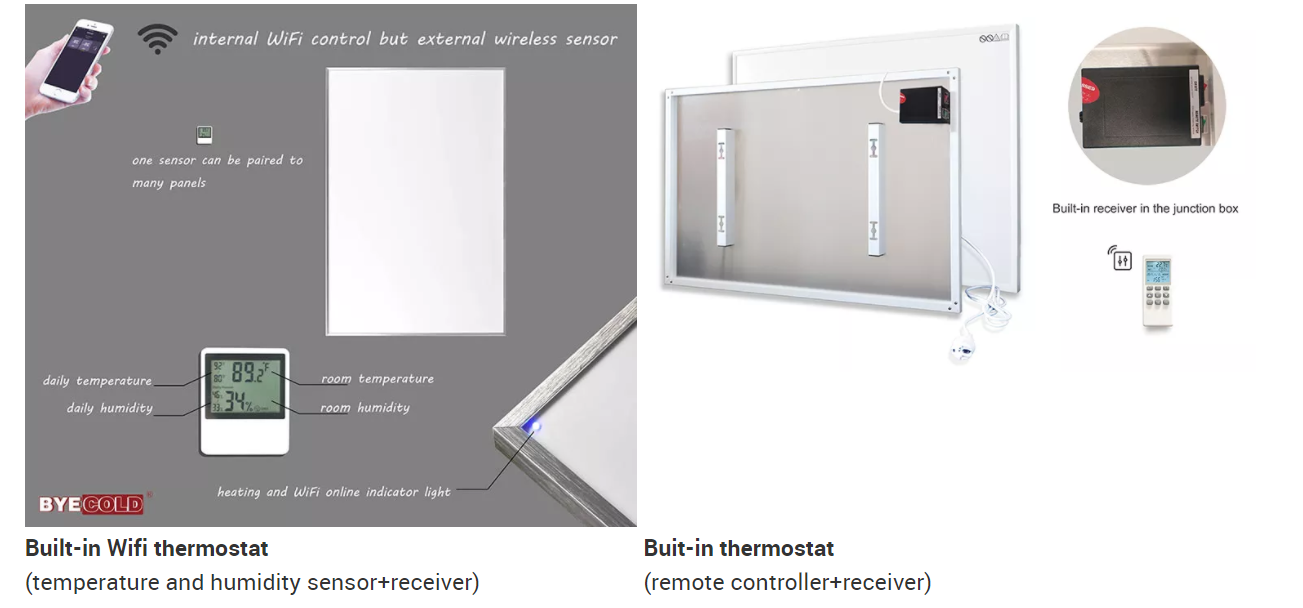

Control Mode | Remote control or WiFi Controlled | Electric Conversion Effiency | 98% |
SCENE DISPLAY
